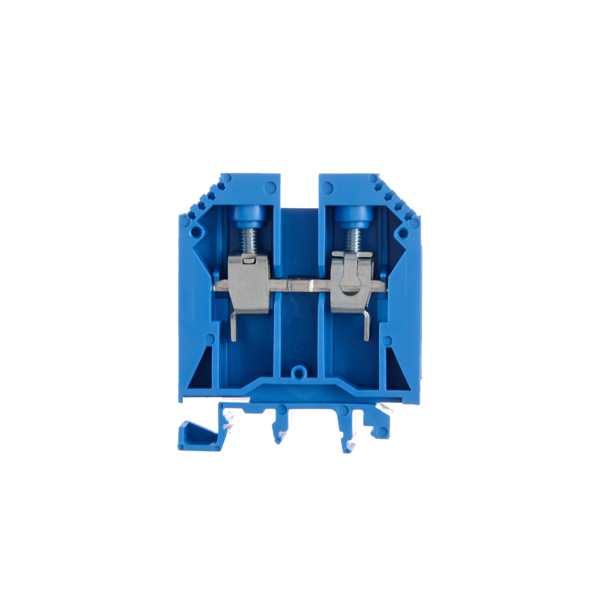

Blue feed-through terminal block for 16 mm² conductor

BPN-16-AZ
060.201

SKU: BPN-16-AZ | 060.201 Category:

Description

Main Features

Dimensions

  • Length: 56 mm
  • Height: 66 mm
  • Width: 12.2mm

Material of clamping element: Trivalent chromium, passivated, zinc-plated steel

Material of conductive element: Tin-plated copper

Insulating body material: 6.6 polyamide

Color: Blue

Technical Data

Type of connection: Screw

Fixing support: NS-35 symetrical DIN rail

Flexible conductor cross-section : 16 mm2

Rigid conductor cross-section: 35 mm2

Nominal voltage: 800 VCA

Nominal current: 76 A

Torque: 2 Nxm

Stripping length: 14 mm

Complying with standards: IEC 60947-7-1

Ambient conditions:

  • Ambient temperature for assembly:                                   From  -5ºC    to  +40ºC
  • Ambient temperature for operation:                                  From  -25ºC   to  +110ºC (con ΔT incluido)
  • Ambient temperature for actuation:                                   From  -5ºC     to   +60ºC (para aparatos seccionadores)
  • Ambient temperature for transport and storage:             From  -25ºC   to   +55ºC

Ambient permissible humidity:

  • Under 50% RH at 40 °C
  • From 51% to 90% at 20 °C

Maximum Altitud: 2000 m over sea level

Accessories

Cover: D-BPN-16/35-AZ

Partition plate: Yellow, 2 mm wide, SE3; – Yellow, 1 mm wide, SE3-D; – Gray, 1 mm wide, SE3-D-GR

Fixed bridge: JSSB-10-12/BPN

Disconnect bridge: SB-02-12/BPN

Female connector: PSB4/7/6

Test plug: PS

Marking: IBC, IB series

End bracket: EKN2

Screwdriver: DES-06
