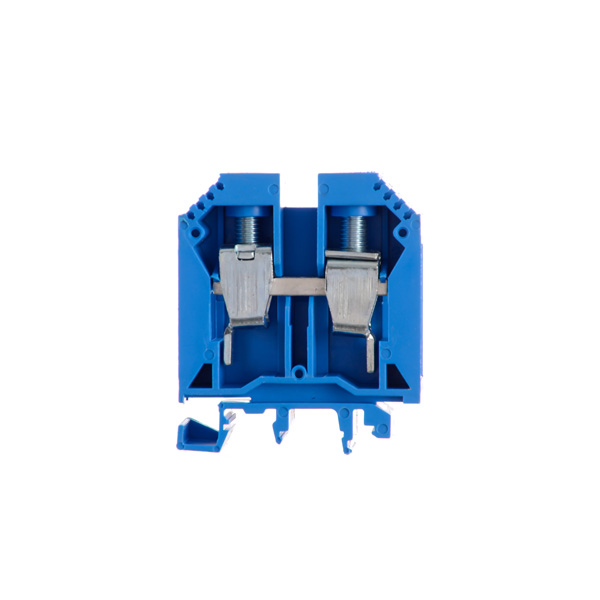

Blue feed-through terminal block for 35 mm² conductor
BPN-35-AZ
060.301
Description
Main Features
Dimensions
- Length: 56 mm
- Height: 66 mm
- Width: 16.2mm
Material of clamping element: Trivalent chromium, passivated, zinc-plated steel
Material of conductive element: Tin-plated copper
Insulating body material: 6.6 polyamide
Color: Blue
Technical Data
Type of connection: Screw
Fixing support: NS-35 symetrical DIN rail
Flexible conductor cross-section : 35 mm2
Rigid conductor cross-section: 50 mm2
Nominal voltage: 800 VCA
Nominal current: 125 A
Torque: 3.5 Nxm
Stripping length: 14 mm
Complying with standards: IEC 60947-7-1
Ambient conditions:
- Ambient temperature for assembly: From -5ºC to +40ºC
- Ambient temperature for operation: From -25ºC to +110ºC (con ΔT incluido)
- Ambient temperature for actuation: From -5ºC to +60ºC (para aparatos seccionadores)
- Ambient temperature for transport and storage: From -25ºC to +55ºC
Ambient permissible humidity:
- Under 50% RH at 40 °C
- From 51% to 90% at 20 °C
Maximum Altitud: 2000 m over sea level
Accessories
Cover: : D-BPN-16/35-AZ
Partition plate: Yellow, 2 mm wide, SE3; – Yellow, 1 mm wide, SE3-D; – Gray, 1 mm wide, SE3-D-GR
Fixed bridge: JSSB-10-12/BPN
Disconnect bridge: SB-02-12/BPN
Female connector: PSB4/7/6
Test plug: PS
Marking: IBC, IB series
End bracket: EKN2
Screwdriver: DES-06
