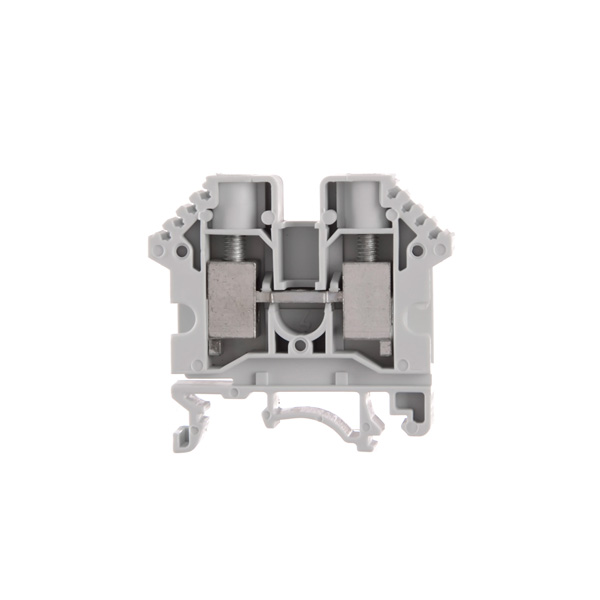

Feed-through terminal block for 10 mm² conductor, copper alloy clamp

BKL-10
066.031

SKU: BKL-10 | 066.031 Category:

Description

Main Features

Dimensions

  • Length: 50 mm
  • Heigth: 48 mm
  • Width: 10.2 mm

Material of clamping element: Nickel-plated copper alloy

Material of conductive element: Tin-plated copper

Insulating body material: Polyamide 6.6

Color: RAL 7035 gray

Technical data

Type of connection: Screw

Fixing support: NS-35 symetrical DIN rail

Flexible conductor cross-section: 10 mm2

Rigid conductor cross-section: 16 mm2

Nominal voltage: 800 VCA

Nominal current: 57 A

Torque: 1.2 Nxm

Stripping length: 12 mm

Complying with standards: IEC 60947-7-1

Ambient conditions:

  • Ambient temperature for assembly:                           From -5ºC to +40ºC
  • Ambient temperature for operation:                          From -25ºC to +110ºC (ΔT included)
  • Ambient temperature for actuation:                           From -5ºC to +60ºC (for disconnection devices)
  • Ambient temperature for transport and storage:     From -25ºC to +55ºC

Ambient permissible humidity:

  • Under 50% RH at 40 °C
  • From 51% to 90% at 20 °C

Maximum altitude: 2000 m over sea level

Accessories

Partition plate: Yellow, 2 mm wide, SE1 Yellow, 1 mm wide SE1-D– Gray, 1 mm wide SE1-D-GR

Fixed bridge: JSSB-10-10/BPN

Bridge jumpers: U-JSSB-10/BPN

Disconnect bridge: SB-02-10/BPN

Marking: Serie IBC, IB

End bracket: EKN1

Screwdriver: DES-05

Descargas

Catalog

Certificate IRAM

Certificate RoHS

Instructivos

Instructions
