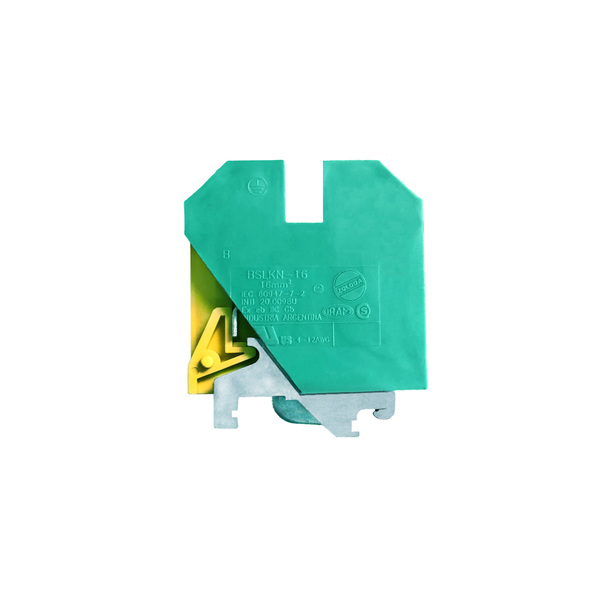

Ground terminal for 16 mm² conductor
BSLKN-16
062.003
SKU: BSLKN-16 | 062.003
Category: Ground terminal blocks
Description
Main Features
Dimensions
- Length: 56 mm
- Height: 66 mm
- Width: 12.2 mm
Material of clamping element: Trivalent chromium, passivated, zinc-plated steel
Material of conductive element: Tin-plated copper
Insulating body material: 6.6 polyamide
Color: Green and Yellow
Technical Data
Type of connection: Screw
Fixing support: NS-35 symetrical DIN rail
Flexible conductor cross-section : 16 mm2
Rigid conductor cross-section: 35 mm2
Torque: Clamp 2 Nxm; fixing to rail 1.2 Nxm
Stripping length: 14 mm
Complying with standards: IEC 60947-7-2
Ambient conditions:
- Ambient temperature for assembly: From -5ºC to +40ºC
- Ambient temperature for operation: From -25ºC to +110ºC (con ΔT incluido)
- Ambient temperature for actuation: From -5ºC to +60ºC (para aparatos seccionadores)
- Ambient temperature for transport and storage: From -25ºC to +55ºC
Ambient permissible humidity:
- Under 50% RH at 40 °C
- From 51% to 90% at 20 °C
Maximum Altitud: 2000 m over sea level
Accessories
Partition Plate: Yellow, 2 mm wide SE3 – Yellow, 1 mm wide SE3-D – Gray, 1 mm wide SE3-D-GR
Marking: IBC, IB series
End bracket: EKN2
