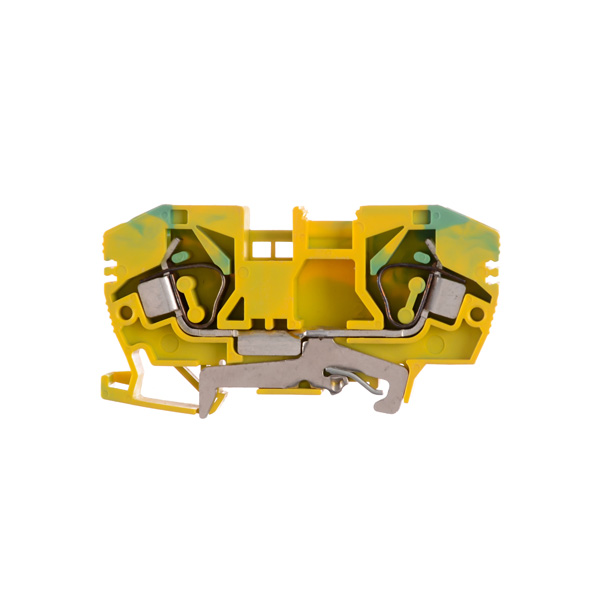

Spring-cage ground terminal block for 10 mm² conductor
BKF-10-T
121.005
Description
Main Features
Dimensions
- Length: 82 mm
- Heigth: 45 mm
- Width: 10.2 mm
Material of clamping element: Nickel-plated copper alloy
Material of conductive element: Tin-plated copper
Insulating body material: Polyamide 6.6
Color: Green and yellow
Technical data
Type of connection: Spring
Fixing support: NS-35 symmetrical DIN rail
Flexible conductor cross-section: 10 mm2
Rigid conductor cross-section: 16 mm2
Stripping length: 16 mm
Complying with standards: IEC 60947-7-1
Ambient conditions:
- Ambient temperature for assembly: From -5ºC to +40ºC
- Ambient temperature for operation: From -25ºC to +110ºC (ΔT included)
- Ambient temperature for actuation: From -5ºC to +60ºC (for disconnection devices)
- Ambient temperature for transport and storage: From -25ºC to +55ºC
Ambient permissible humidity:
- Under 50% RH at 40 °C
- From 51% to 90% at 20 °C
Maximum altitude: 2000 m over sea level
Accessories
Cover: D-BKF-10/VE
Partition plate: S-BKF-10
2-position plug-in fixed bridge: red: JSSB-02-10/BKF-NG
Marking: IBC, IB, ICAB series
End bracket: EKN1
Screwdriver: DES-06
