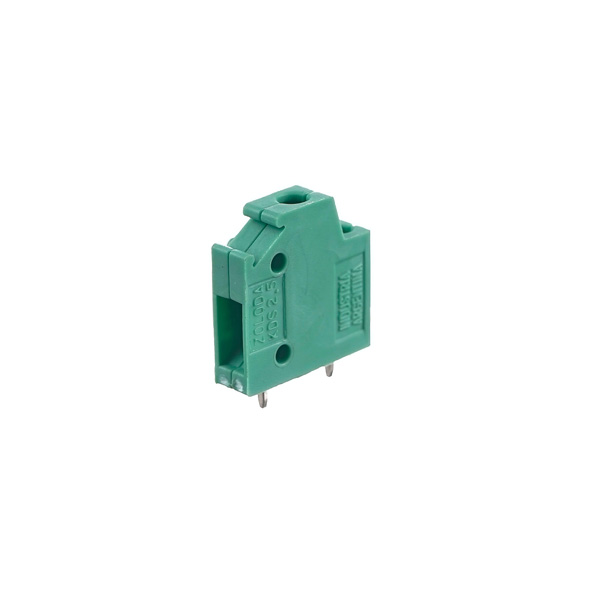

2-pin terminal block for electronics, for 2.5 mm² connector

KDS-2,5
240.018

SKU: KDS-2,5 | 240.018 Category:

Description

Main Features

Dimensions

  • Length: 17 mm
  • Height: 21 mm
  • Width: 5 mm

Material of clamping element: Trivalent chromium, passivated, zinc-plated steel

Material of conductive element: Copper alloy with nickel plating

Insulating body material: 6.6 polyamide

Color: Green

Technical Data

Type of connection: Screw/soldering

Flexible conductor cross-section : 2.5 mm2

Rigid conductor cross-section: 2.5 mm2

Nominal voltage: 250 VAC

Nominal current: 20 A

Torque: 0.4 Nxm

Stripping length: 4 mm

Complying with standards: IEC 60947-7-1

Ambient conditions:

  • Ambient temperature for assembly:                                   From  -5ºC    to  +40ºC
  • Ambient temperature for operation:                                  From  -25ºC   to  +110ºC (ΔT included)
  • Ambient temperature for actuation:                                   From  -5ºC     to   +60ºC (for disconnection devices)
  • Ambient temperature for transport and storage:             From  -25ºC   to   +55ºC

Ambient permissible humidity:

  • Under 50% RH at 40 °C
  • From 51% to 90% at 20 °C

Maximum Altitud: 2000 m over sea level

Accessories

Fixed bridge: P-02-05/BKNC

Test plug: MPS

Marking: IBC Series

Screwdriver: DES-04
