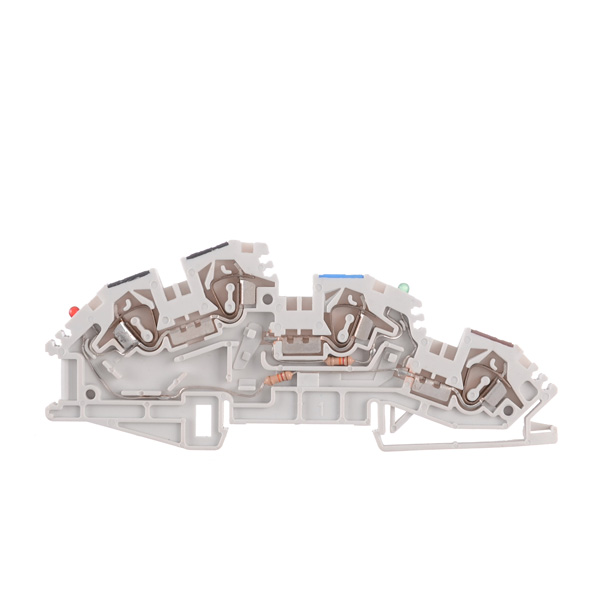

NP-type sensor spring-cage terminal block, with 24 V CC green light indicator and power red light indicator
BKF-SA-1,5/C-N024
122.015
Description
Main Features
Dimensions
- Length: 115 mm
- Heigth: 47 mm
- Width: 4.2 mm
Material of clamping element: Nickel-plated copper alloy
Material of conductive element: Tin-plated copper
Insulating body material: Polyamide 6.6
Color: RAL7035 gray
Technical data
Type of connection: Spring
Fixing support: NS-35 symmetrical DIN rail
Flexible conductor cross-section: 1.5 mm2
Rigid conductor cross-section: 2.5 mm2
Nominal voltage: 24 VCA
Nominal current: 17.5 A
Stripping length: 11 mm
Complying with standards: IEC 60947-7-1
Ambient conditions:
- Ambient temperature for assembly: From -5ºC to +40ºC
- Ambient temperature for operation: From -25ºC to +110ºC (ΔT included)
- Ambient temperature for actuation: From -5ºC to +60ºC (for disconnection devices)
- Ambient temperature for transport and storage: From -25ºC to +55ºC
Ambient permissible humidity:
- Under 50% RH at 40 °C
- From 51% to 90% at 20 °C
Maximum altitude: 2000 m over sea level
Accessories
Cover: D-BKF-SA
Partition Plate: S-BKF-SA
10-position plug-in fixed bridge: – color azul: JSSB-10-04/BKF-AZ – color marrón: JSSB-10-04/BKF-MA
2-position plug-in fixed bridge: color azul: JSSB-02-04/BKF-AZ – color marrón: JSSB-02-04/BKF-MA
Marking: IBC, IB, ICAB series
End bracket: EKN1
Screwdriver: DES-01
