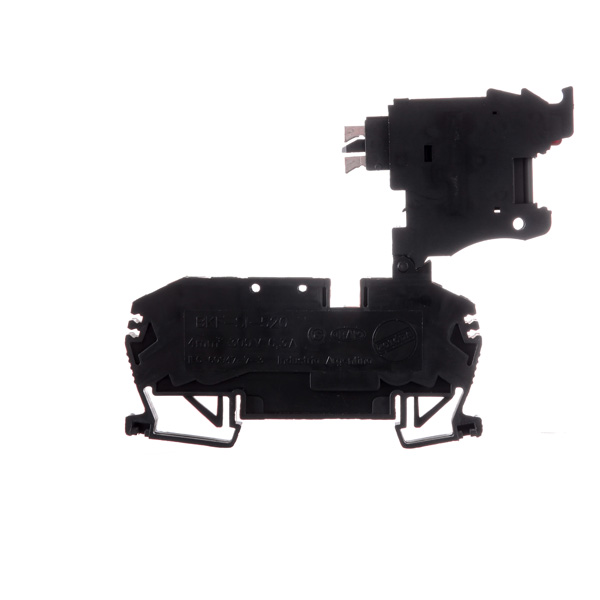

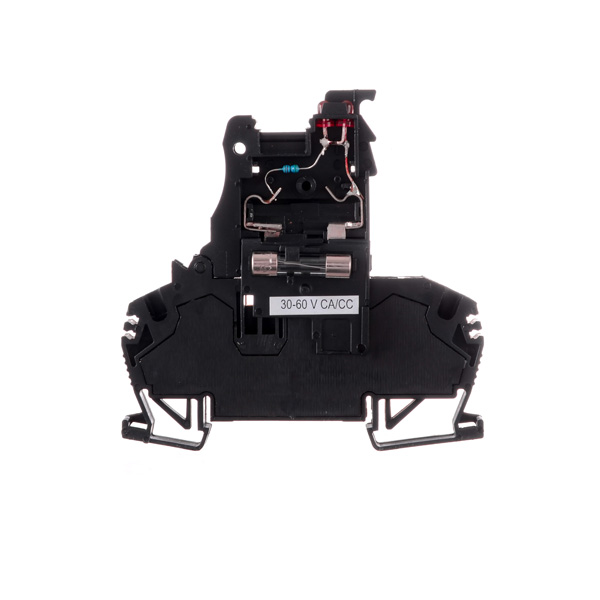

30-60 VAC/CC spring-cage fuse holder terminal block for 5×20 mm fuse, with LED
BKF-SI-520-LL060
122.004
Description
Main Features
Dimensions
- Length: 74 mm
- Heigth: 70 mm
- Width: 6.2 mm
Material of clamping element: Nickel-plated copper alloy
Material of conductive element: Tin-plated copper
Insulating body material: Polyamide 6.6
Color: Black
Technical data
Type of connection: Spring
Fixing support: NS-35 symmetrical DIN rail
Flexible conductor cross-section: 4 mm2
Rigid conductor cross-section: 6 mm2
Nominal voltage: 30 – 60 VCA
Nominal current: 6.3 A
Stripping length: 12 mm
Complying with standards: IEC 60947-7-1
Ambient conditions:
- Ambient temperature for assembly: From -5ºC to +40ºC
- Ambient temperature for operation: From -25ºC to +110ºC (ΔT included)
- Ambient temperature for actuation: From -5ºC to +60ºC (for disconnection devices)
- Ambient temperature for transport and storage: From -25ºC to +55ºC
Ambient permissible humidity:
- Under 50% RH at 40 °C
- From 51% to 90% at 20 °C
Maximum altitude: 2000 m over sea level
Accessories
Partition plate: 2 mm-thick, yellow, SE3 – 1 mm-thick, yellow, SE3-D – 1 mm-thick, gray, SE3-D-GR
2-position plug-in fixed bridge: yellow: JSSB-02-06/BKF-AM
Marking: IBC, IB, ICAB series
End bracket: EKN1
Screwdriver: DES-04
