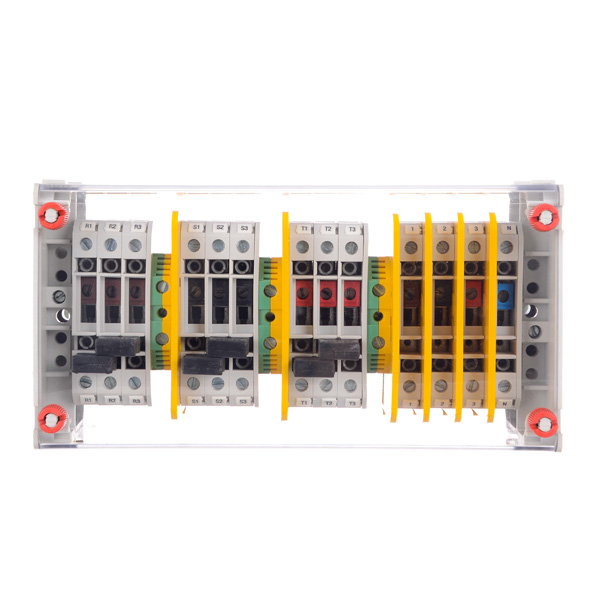

Terminal board for measuring and contrast, with third terminal block by phase, and ground terminal block
BMC1/7
250.009
Description
Main Features
Dimensions
- Length: 114 mm
- Height: 78 mm
- Width: 213.4 mm
Type of connection: screw
Cross-section of flexible conductor: 1.5 to 10 mm2
Material of clamping element: passivated trivalent chromium zinc-plated steel
Material of conductive element: tin-plated copper
Material of insulating housing: 6.6 polyamide and crystal-colored polycarbonate lid
Color: RAL7035 gray and transparent lid
Complying with standards: IEC 60947-7-1
Technical Data
Operation voltage: 500 V AC
Nominal current: 57 A
Test voltage: 2000 V
Operation temperature range: -5 °C to +50 °C
Cable clamp / disconnector torque: 1.2/0.8 Nxm
