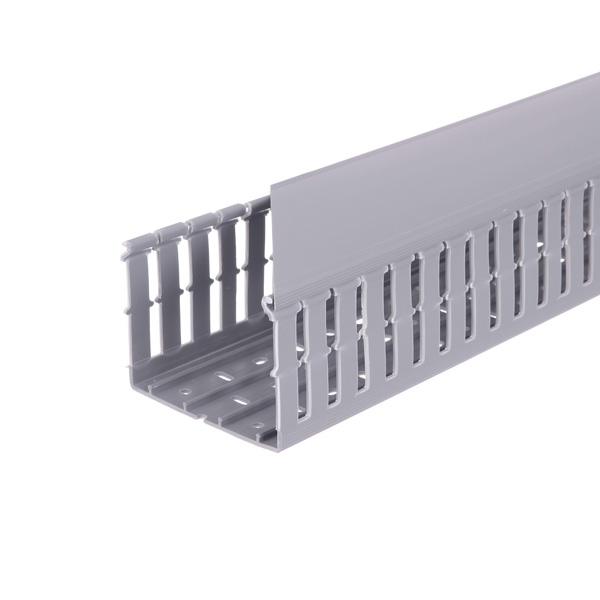

Description

Main Features

Dimensions

• Base: 100 mm
• Height: 80 mm
• Trunking length: 2 m

Self-adhering tape on the base: no

Divider: Up to 2 optionals (3 compartments)

Construction material: insulating rigid PVC

Color: Gray

Complying with standards: IRAM 62084-1, 62084-2-1; IEC 61084-1, 61084-2-1

Technical Data

Effective cross-section: 7050 mm²

Protection against corrosive or contaminant substances: Low (internal and external)

Operating temperature range: -5 °C to +60 °C

Flame retardant: Self-extinguishing V0 (UL-94)

Maximum temperature resistance: 650 °C

Flame resistant: 1 kW burner

Insulation resistant: Over 100 MΩ

Protection rate: IP-20

Accessories

Dividers: “I” trunking divider SE-N1-80-GR– “T” trunking divider SE-N2-80-GR

Rivet: fixing rivet RM-N

Inside brackets: Cable clamp TN-100 – Divider clamp TSE-100

Descargas

Catalog

Certificate IRAM

Instructivos

Instructions will be available shortly.
