ZolodaShopCable trunking and cable ductsCable trunkingRadiance SeriesCable trunking, 14×7 mm, with adhesive, for LED light strip, translucent opal effect cover

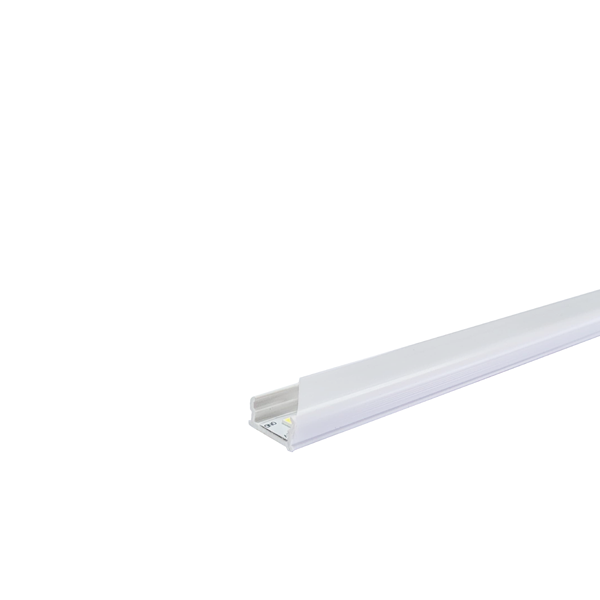

Cable trunking, 14×7 mm, with adhesive, for LED light strip, translucent opal effect cover

TP-1407A-OL

604.002

SKU: TP-1407A-OL | 604.002 Category:

Description

Main Features

Dimensions

  • Base: 14 mm
  • Height: 7 mm
  • Trunking length: 2 m

Self-adhesive tape on the base: yes

Divider: no

Construction material:

  • Base: white PVC
  • Cover: crystal PVC

Color:

  • Base: White
  • Cover: translucent opal effect

Complying with standards: IRAM 62084-1, 62084-2-1; IEC 61084-1, 61084-2-1

Technical data

Protection against corrosive or contaminant substances: Low (internal and external)

Operating temperature range: -5 °C to +60 °C

Flame retardant: Self-extinguishing V0 (UL-94)

Maximum temperature resistance: 650 °C

Flame resistant: 1 kW burner

Insulation resistant: Over 100 MΩ

Protection rate: IP-41

Accessories

Adapter: AD-1407-BL

Box: TKN-BLTKN-C-BL (with cover)

Bend: ELE-1407-BL

Angle: LS-1407-BL

End cap: E-1407-BL

Corner: RI-1407-BL

Tee: TE-1407-BL

Joint: U-1407-BL

Other accessories: Self-adhesive tape: CDF-1205 (5 m) – CDF-1210 (10 m)

Descargas

Catalog

Certificate IRAM

Instructivos

Instructions will be available shortly.
