Productos

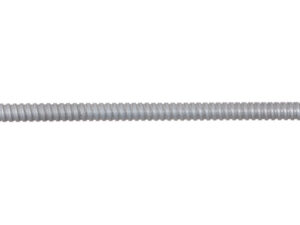

⅜” flexible conduit
LTC-100
Description
Main Features
Inside material: galvanized steel with trivalent chromium electro zinc surface treatment
Outside material: UV-resistant, UL 94 V0 rated, flexible self-extinguishing PVC
Classified as semi-heavy/heavy duty
Protection rate: IP 65
Technical Data
Operating temperature: from -5 °C to + 60 °C
Thermal resistance: 750 °C (glow wire test)
ASTM B 117 salt spray fog test: 72 hours
Dielectric withstand test: >100 mOhm
Electrical continuity: non-conductive (R > 0.1 Ohm)
Complying with standards: certification according to IEC 61386-23
Accessories
Straight male connector: CRC-5331
Straight male connector NPT: CRC-5331/NPT
90 ° curve connector, BSP thread: CCC-5351

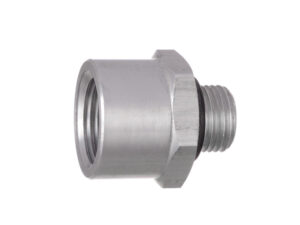

Adapter from BSP thread to metric screw thread: (BSP->M16x1,5) AM-163812
Nut: TR-32
Descargas
Instructivos
Instructions will be available shortly.
