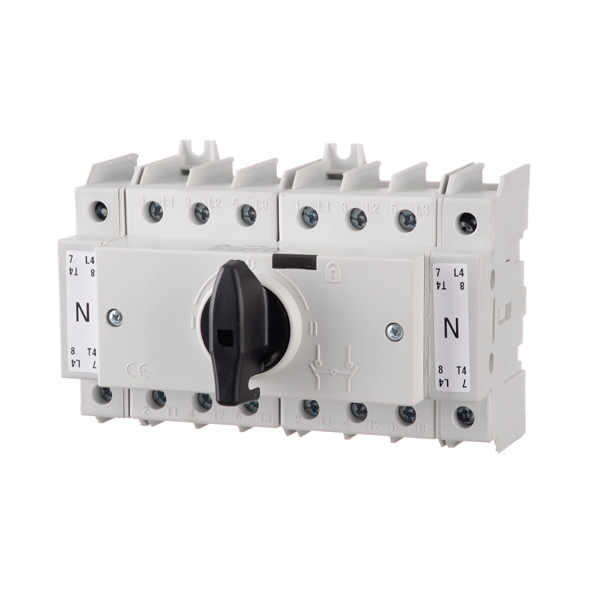

SD2 assembled changeover switch 4 x 80 A

192363

326.006

SKU: 192363 | 326.006 Category:

Description

Main Features

Dimensions

  • Length:  100 mm
  • Height: 95 mm
  • Width: 140 mm

Complying with standards: IEC 60947-1, IEC 60497-3

Technical Data

Rated operational current (Ie): 80 A

Rated operational voltage (Ue): 600 V AC

Cross section of flexible conductor: 16-50 mm2

Max. torque: 3.5 Nxm

Degree of protection: IP20

Enclosure material: Self-extinguishing V0 (UL 94)

Accessories

Black round handle with door blocking: 19460

100 mm shaft for external operation: 19534-100P

300 mm shaft for external operation: 19534-300P

Fourth pole: 19418

Auxiliary contact: 19429

Descargas

Catalog

Instructivos

Instructions will be available shortly.
