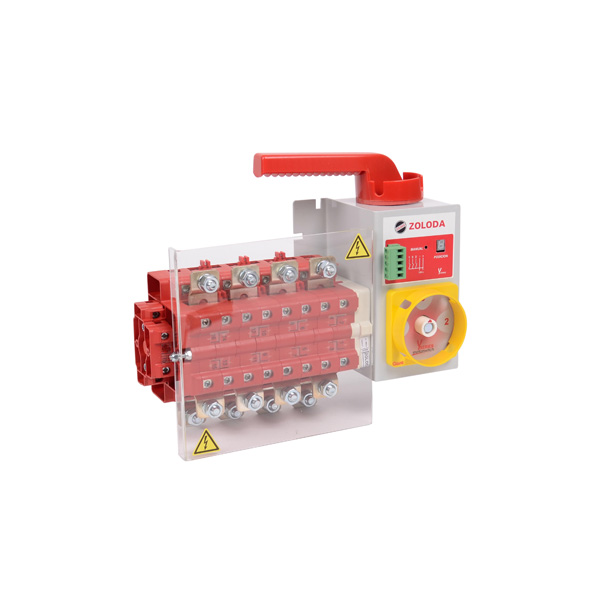

ZolodaShopRotary cam handle switchMotor circuit-breaker switches12 V DC motor, 200 A, 4-pole motorized changeover side switch and digital display showing position
12 V DC motor, 200 A, 4-pole motorized changeover side switch and digital display showing position
12 V DC motor, 200 A, 4-pole motorized changeover side switch and digital display showing position

12 V DC motor, 200 A, 4-pole motorized changeover side switch and digital display showing position

YL563B101

318.009

SKU: YL563B101 | 318.009 Category:

Description

Main features

Enclosure material: self-extinguishing fiberglass polyester

Material of contacts: silver alloy

Complying with standards: IEC 60947-3

Technical data

Operating amperage (Ie): 200 A

Operating voltage (Ue): 690 V

Supply voltage: 12 VDC

Peak demand: 2.5 A

Power rating: 40 mA

Position indicator: 7-segment display

Cross-section of flexible conductor: 95 mm2

Connection screws: M8

Torque: 3.5 Nxm

Descargas

Catálogo – Interruptores Rotativos a Levas

Instructivos

Instructions will be available shortly.
