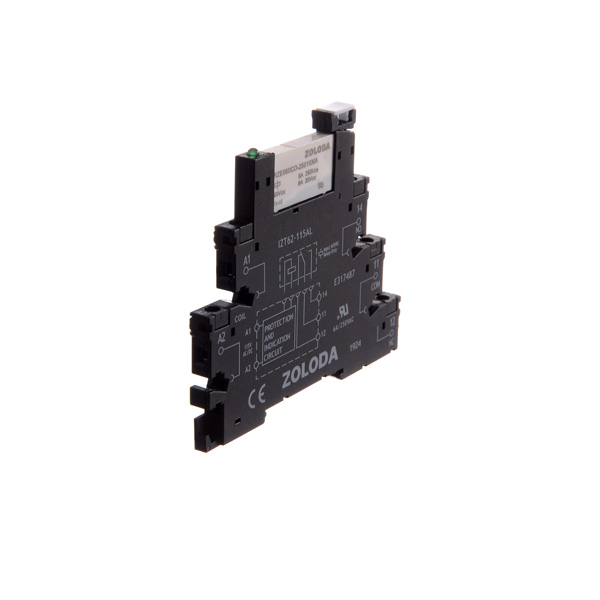

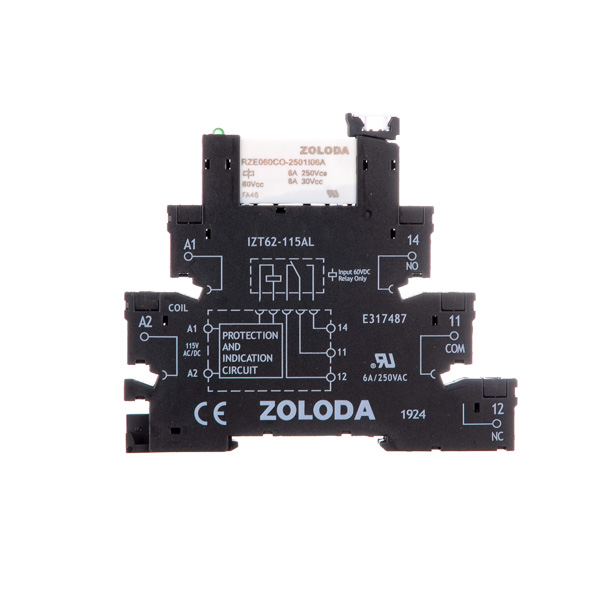

Screw electromechanical interface, 6.2 mm, 1 changeover contact, 115 V AC/V CC input, 250 Volt output, 1×6 A, 60 V CC relay
IZET62-115AL-060CO-2501I06
221.023
Description
Main features
Dimensions
- Length: 89 mm
- Height: 76 mm
- Width: 6.2 mm
Enclosure material: Polyamide V0
Complying with standards: UL 508A | IEC 60664-1 | IEC 61984
Technical data
Input voltage: 110 V CA/ V CC
Output current: 6 A
Output voltage: 250 V CA
Number of contacts: 1 changeover contact
Type of connection: Screw
Operating temperature: -25 a 70 °C
Mechanical durability of contacts: 1×107 operations
Degree of protection: IP20
Cable cross-section inputs/outputs: 1-2.5 mm2
Torque: 0.6 Nxm
Accessories
Relay: RZE060CO-250|06A
Bridge: CB-CLR-20
Partition: SE2-D (yellow) | SE2-D-GR
Tag: CW-IZ
Screwdriver: DES-03
