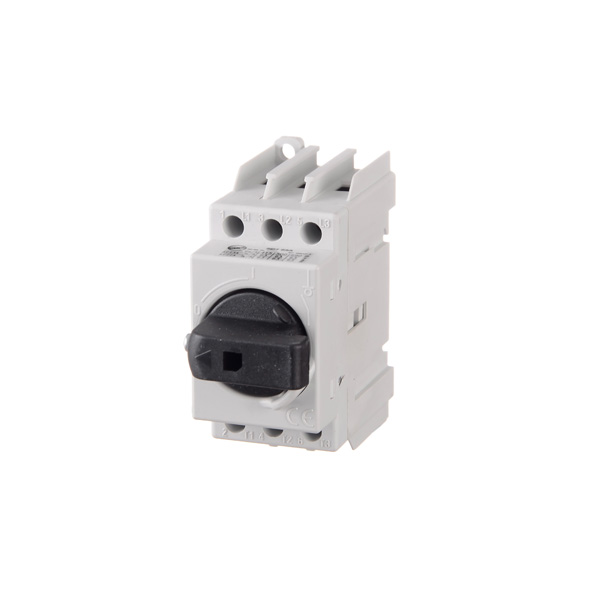

SD1 3 x 63 A switch disconnector, with direct handle
19304
325.002
Description
Main Features
Dimensions
- Length: 80 mm
- Height: 80 mm
- Width: 35 mm
In compliance with: IEC 60947-1, IEC 60497-3
Technical Data
Rated operational current (Ie): 63 A
Rated operational voltage (Ue): 600 V DC
Cross section of flexible conductor: 16-25 mm2
Max. torque: 3.5 Nxm
Degree of protection: IP20
Enclosure material: Self-extinguishing V0 (UL 94)
Accessories
Black round handle with door blocking: 19460
Red-yellow round handle with door blocking: 19461
Black round handle without blocking: 19466
Red-yellow round handle without blocking: 19467
100 mm shaft for external operation: 19534-100P
300 mm shaft for external operation: 19534-300P
Fourth pole: 19320
Auxiliary contact: 19429
Descargas
Instructivos
Instructions will be available shortly.
