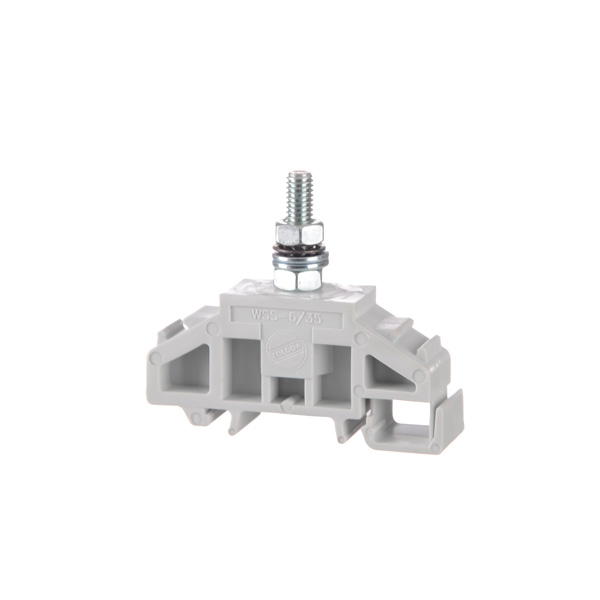

Single terminal block for terminal connection. Bolt diameter 6 mm.
WSS-06/35
185.202
Description
Main Features
Dimensions
- Length: 60 mm
- Height: 64 mm
- Width: 36 mm
Insulating body material: 6.6 polyamide
Color: RAL 7035 gray
Technical Data
Type of connection: Screw
Fixing support: NS-35 symmetrical DIN rail
Flexible conductor cross-section: M6
Rigid conductor cross-section: M6
Nominal voltage: 300 V AC without partition / 800 V AC with partition
Nominal current: as per terminal
Complying with standards: IEC 60947-7-1
Ambient conditions:
- Ambient temperature for assembly: From -5 ºC to +40 ºC
- Ambient temperature for operation: From -25 ºC to +110 ºC (ΔT included)
- Ambient temperature for actuation: From -5 ºC to +60 ºC (for disconnection devices)
- Ambient temperature for transport and storage: From -25 ºC to +55 ºC
Ambient permissible humidity:
- Under 50% RH at 40 °C
- From 51% to 90% at 20 °C
Maximum altitude: 2000 m over sea level
Accessories
Partition plate: Yellow, 2 mm-thick SE1
Fixed bridge: JSS-02-06 – Intermediate partition: JSS-02-06/S
Marking: IBC Series
End bracket: EKN1
