3-pole 16 A safety switch disconnector in enclosure
A-BA521007
319.001
Description
Main features
Dimensions
- Width: 100 mm
- Height: 130 mm
- Depth: 124.6 mm
Degree of protection: IP65
Enclosure material: polycarbonate
Complying with standards: IEC 60947-3
Technical data
Operating amperage (Ie): 16 A
Operating voltage (Ue): 690 V
Cross-section of flexible conductor: 2.5 – 6 mm²
Torque: 1.6 Nxm
Auxiliary contact: 1 NO
AC22 3 X 230 V: 4 kW
AC22 mixed loads 3 X 400V: 7.5 kW
AC22 0.65 < CosPhi < 0.95 3X500V: 11 kW
AC23 3X230V: 3 kW
AC23 motor loads 3 X 400 V: 5.5 kW
AC23 0.45< CosPhi <0.65 3 X 500V: 7.5 kW
Accessories
3/8″ straight male connector: CRC-5331
1/2″ straight male connector: CRC-5332
3/4″ straight male connector: CRC-5333

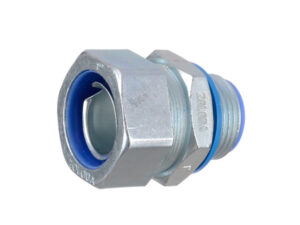

1″ straight male connector: CRC-5334
3/8″ 90° male connector: CCC-5351
1/2″ 90° male connector: CCC-5352
3/4″ 90° male connector: CCC-5353
1″ 90° male connector: CCC-5354
