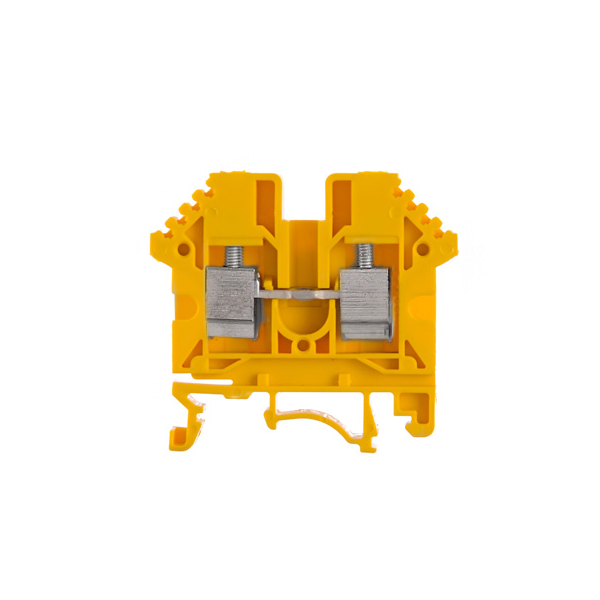

Description

Main Features

Dimensions

• Length: 50 mm
• Height: 48 mm
• Width: 6.2 mm

Material of clamping element: nickel-plated copper alloy

Material of conductive element: tin-plated copper

Insulating body material: polyamide 6.6

Color: yellow

Technical Data

Type of connection: screw

Fixing support: NS-35 symmetrical DIN rail

Flexible conductor cross-section: 4 mm²

Rigid conductor cross-section: 6 mm²

Nominal voltage: 800 V AC

Nominal current: 32 A

Torque: 0.5 Nxm

Stripping length: 12 mm

Complying with standards: IEC 60947-7-1

Ambient conditions:

• Ambient temperature for assembly: from -5 ºC to +40 ºC
• Ambient temperature for operation: from -25 ºC to +110 ºC (ΔT included)
• Ambient temperature for actuation: from -5 ºC to +60 ºC (for disconnection devices)
• Ambient temperature for transport and storage: from -25 ºC to +55 ºC

Ambient permissible humidity:

• Under 50 % RH at 40 °C
• From 51 % to 90 % at 20 °C

Maximum altitude: 2000 m over sea level

Accessories

Cover: D-BPN-2,5/10-AM

Partition plate: yellow, 2 mm-thick, SE1; yellow, 1 mm-thick, SE1-D; gray, 1 mm-thick, SE1-D-GR

Fixed bridge: JSSB-10-06/BPN

Disconnect bridge: SB-02-06/BPN

Bridge jumpers: U-JSSB-06/BPN

Female connector: PSB2.5

Test plug: MPS

Marking: IBC series, IB

End bracket: EKN1

Screwdriver: DES-04
