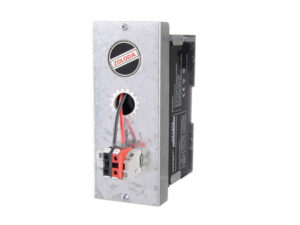

Uninterruptible power supply, input and output: 12 V CC, 30 A

Description

Main Features

Dimensions

Enclosure material: ABS

Technical Data

Input voltage: 12 V CC

Output voltage: 12 V CC

Output current: 30 A

Charge current: selectable 0.5-1-2.5 A

Charge voltage: selectable 13.6 – 14.25 V CC

Mininum and maximum input voltage range: 11-14 V CC

Input current: quiescent: 0.2 A | battery charge: 3.5 A

Output nominal current: output charge to be protected 30 A

Output holding time: according to battery bank

Parallel connection: Selectable (S/P): yes

Operating termperature: -25 to 70 °C

Relative humidity: 20 to 95 % RH

Altitude: 4850 m

Mounting position: vertical

Protection degree: IP20

Cable cross-section, inputs/outputs: 0.2-4 mm²| Signalling: 0.2-2.5 mm²
