Battery-holder 12 V, 7.2 Ah
PBZ-7,2
560.300
Description
Main features
Dimensions
- Length: 181 mm
- Height: 74 mm
- Width: 150 mm
Material of terminal block housing: 6.6 polyamide
Conductive material: copper alloy
Enclosure material: metal
Technical Data
Parallel connection: yes
Mounting position: universal, fixing by screws
Output terminal block: For 4 mm2 cross section cable
Connection of the battery to the terminal block included.
Additional features

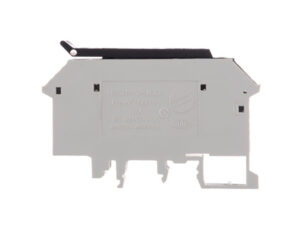

Short-circuit protection: replace red terminal block (+) by BPSN-SI-632 series fuse-holder terminal block.
Instructivos
Instructions will be available shortly.
