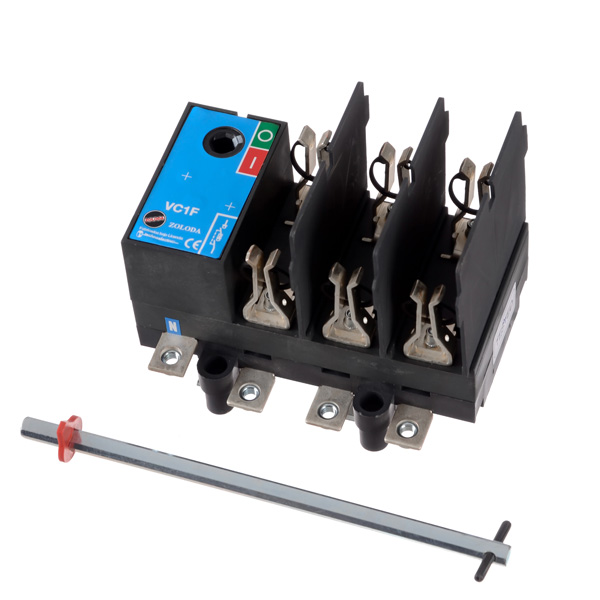

Load break disconnect switch, with fuse holder, VC1F, 4×63 A, NH 000, without handle

Load break disconnect switch, with fuse holder, VC1F, 4×63 A, NH 000, without handle

11052SM

350.006

SKU: 11052SM | 350.006 Category:

Description

Main Features

Operational current (Ie): 63 A

Operational voltage (Ue): 690 V AC

Rated insulation voltage (Ui): 1500 V

Cross-section of flexible conductor: 16 mm2

Torque: 8 Nxm

Fuse short-circuit current: 50 kA

Fuse current: 63 A

Enclosure material: Self-extinguishing (V0)

Complying with standards: IEC 60947-1; IEC 60947-3

Accessories

70 mm handle with door blocking: black: 18001 / red-yellow: 18002

70 mm handle with door unblocking: black: 18220 / red-yellow: 18221

Handle and cover kit: with 70 mm handle w/o door blocking: 18190
