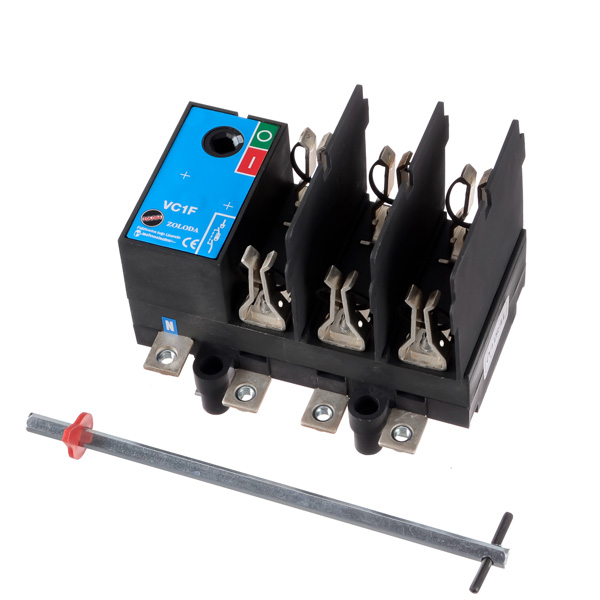

Load break disconnect switch, with fuse holder, VC1F, 4 x 80 A, NH 000, without handle

Load break disconnect switch, with fuse holder, VC1F, 4 x 80 A, NH 000, without handle

11053SM

350.008

SKU: 11053SM | 350.008 Category:

Description

Main Features

Rated operational current (Ie): 80 A

Rated operational voltage (Ue): 690 V AC

Rated insulation voltage (Ui): 1500 V

Cross section of flexible conductor: 25 mm2

Torque: 8 Nxm

Fuse short-circuit current: 50 kA

Fuse current: 80 A

Enclosure material: Self-extinguishing (V0)

Complying with standards: IEC 60947-1; IEC 60947-3

Accessories

70 mm handle with door blocking: Black: 18001 – Red – Yellow: 18002

70 mm handle with door unblocking: Black: 18220 – Red – Yellow: 18221

Handle and cover kit: With 70 mm handle w/o door blocking: 18190
